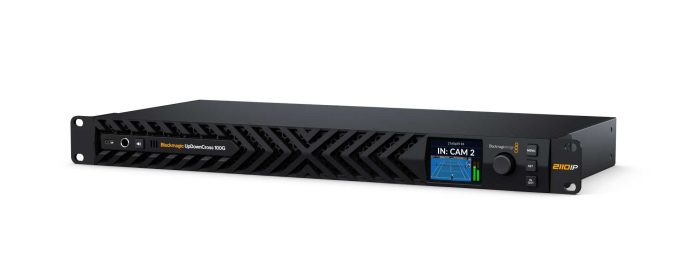

UpDownCross 100G Blackmagic

Name: UpDownCross 100G Blackmagic
Brand: Blackmagic
SKU: 21916
Price: 4047.00 EUR
Availability: InStock

Kategorijos: 2110 IP, Keitikliai, Vaizdo įranga

4,047.00€

Keitiklis UpDownCross 100G

Įsiminti prekę

Greitas paruošimas

Paruošime prekes išsiuntimui

per vieną dieną.

Saugiai įpakuosime

Kad nesulauktumėte jokių

netikėtumų.

Aprašymas

„Blackmagic UpDownCross 100G“ – daugiakanalis standartų keitiklis su vietinėmis SMPTE-2110 jungtimis per 100G Ethernet. Konvertuoja iki 8 atskirų SD, HD ir „Ultra HD“ vaizdo įrašų kanalų į bet kurį kitą standartą vienu metu.

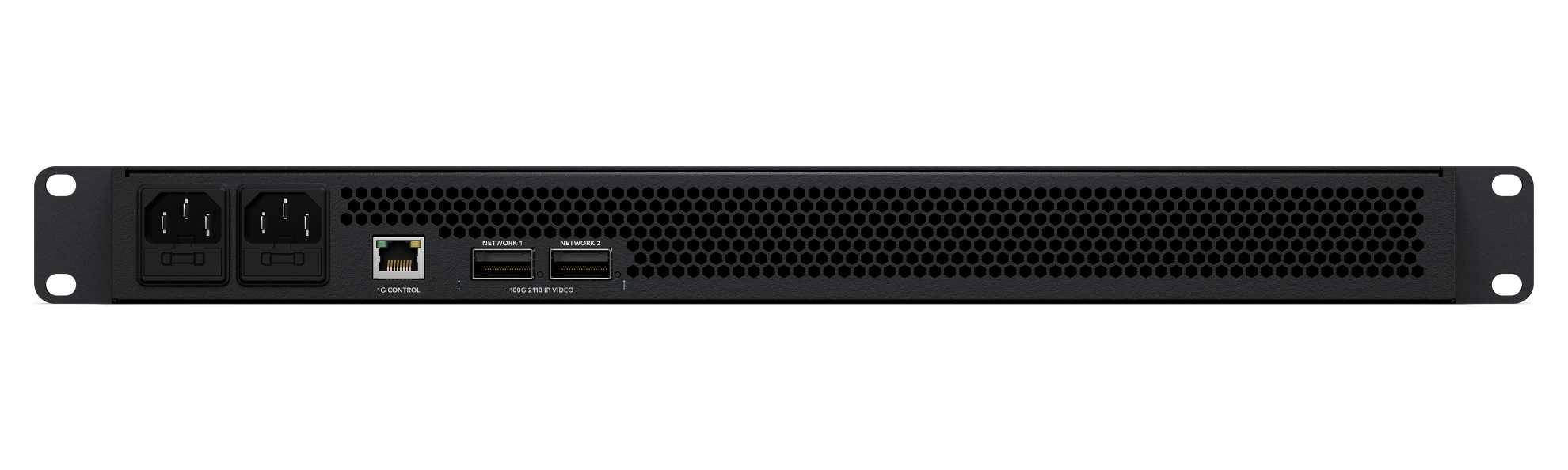

Connections
100G 2110 IP Networks	2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.	SMPTE ST 2110 IP Audio Outputs	16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet
Senders and Receivers	8 x Ultra HD or HD	Analog Audio Outputs	1 x 6.35 mm headphone jack
1G Control Network	1 x 1G RJ45 for NMOS control, configuration and firmware updates	Computer Interface	1 x USB-C for configuration and firmware updates
SMPTE ST 2110 IP Audio Inputs	16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet	Power	2 x IEC C14 power inputs
Video Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL	SMPTE Compliance	SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
HD Video Standards	720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30	Audio Sampling	Television standard sample rate of 48 kHz and 24 bit
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60	Color Precision	10-bit 4:2:2 YUV
		Color Space	Rec. 709, Rec. 2020
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)	IGMP v3	Precision Time Protocol	EEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
SMPTE 2110-21 (Traffic Shaping)	Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous	NMOS IS-04 Discovery and Registration	v1.3.2 Peer-to-peer via mDNS/DNS-SD
SMPTE 2110-30 (PCM)	Audio Conformance level: Level C	NMOS IS-05 Connection Management	v1.1.2
SMPTE 2110-40 (Ancillary Data)	Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata	NMOS BCP-002-01	Natural Grouping
Codec	Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video	NMOS BCP-004-01	Receiver capabilities

Audio
Headphones	Front panel headphone outputs active monitor	Audio Controls	Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial
Built in Speaker	Front panel mono speaker outputs active monitor
Displays
Display	Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel
Control
Built in Control Panel	2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings	External Control	RJ-45 Ethernet and USB-C
Power Requirements
Power Supply	2 x 100 ‑ 240V AC 50/60Hz internal power supplies	Power Usage	TBC
Power Inputs	2 x IEC C14 sockets

Physical Installation	1 rack unit
Dimension	482.6 x 218 x 44.2 mm	Weight	3.01 kg
